ダブルスライド、オーバートラベル製品です。
専用部品を組み込み導通性を確保しています。
カタログPDFを見る
※文中の(頁)は「栃木屋総合カタログ 71」の頁となります。
CADデータダウンロード
2D
DXF
3D
STP
IGS
X_T
SAT
PDF

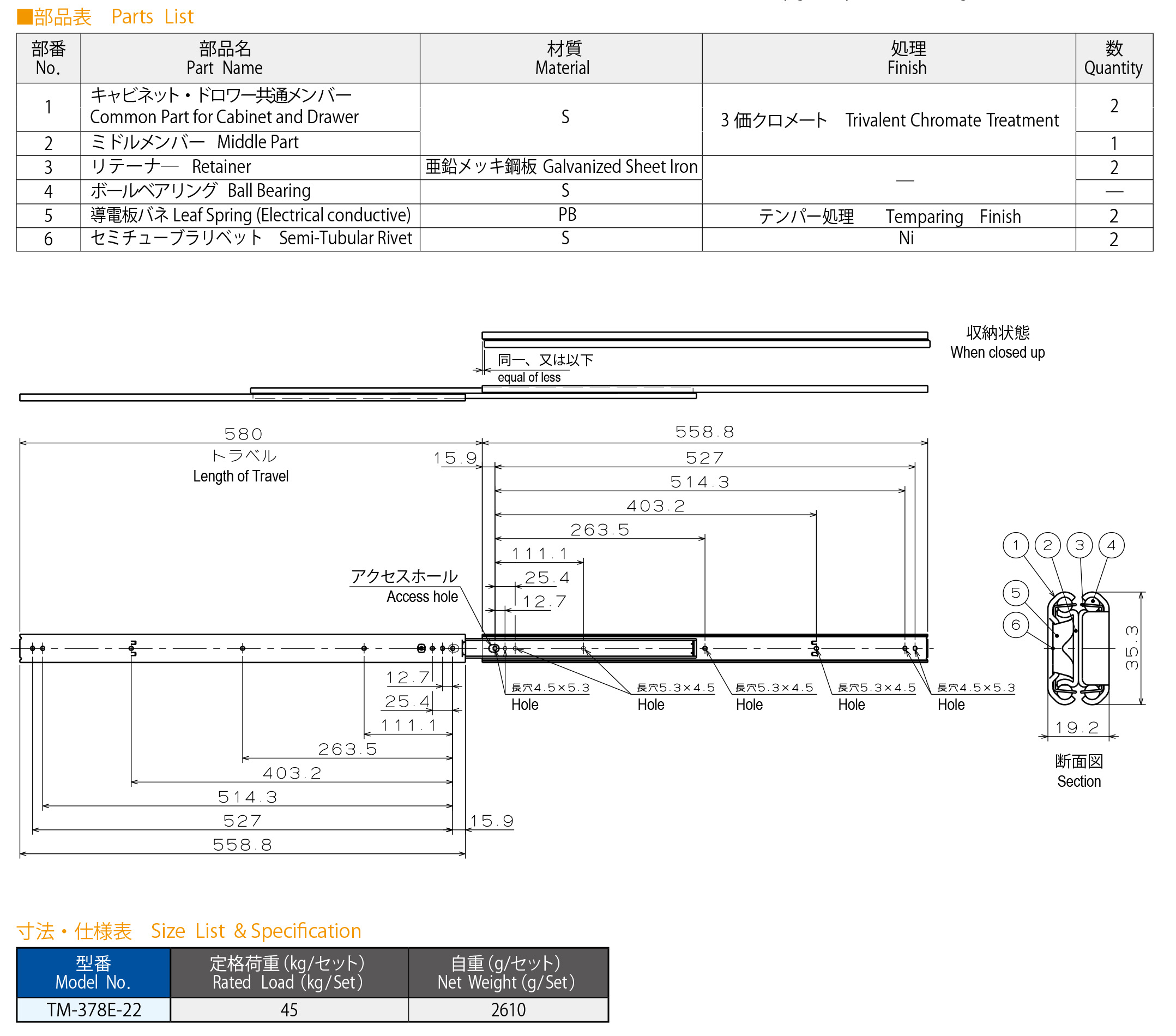

TM-378E-22

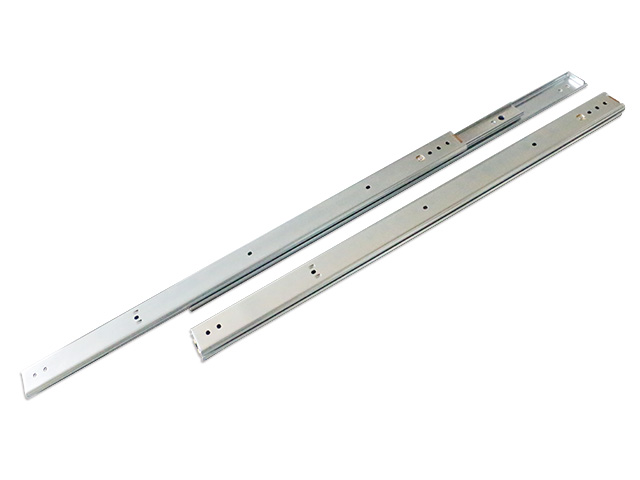

導電性スライドレール(2本1セット)
Slide Rail with Electrical Conductivity



¥5,500(税抜)
¥6,050(税込)
数量:
日本語
ENGLISH
特長
Characteristic
Double slide, over travel products.
Special parts ensure its electrical conductivity.
Special parts ensure its electrical conductivity.
用途
各種測定機器、通信機等の筐体、OA機器等
Application
Measuring instruments/ Office automation appliances/ Boxes for telecommunication devices, etc.
仕様
抵抗値0.1Ω以下/セット(静止時)
(キャビネットメンバー、ドロワーメンバー間)
(キャビネットメンバー、ドロワーメンバー間)
Specification
Resistance value: less than 01 Ohm/Set (at inoperative status)
(Area between Cabinet/ Drawer member)
(Area between Cabinet/ Drawer member)
注意事項
使用ネジ:M4トラス又はバインド小ねじをご使用ください。
各メンバーは分解できません。
抵抗値は本製品単体での数値となります。「ボンディング線が不要となる効果」「ボンディング線と併用することで断線した場合の補助」を期待する製品になりますが、必ず実装による検証をお願いします。また、電材部品(リード線等)としての使用はしないでください。
ミドルメンバーの平滑面に塗布されたグリスは除去しないでください。
塗装面は電気が流れないため、塗装筐体に取り付ける際は取付穴周辺にマスキングを施して取り付けてください。
各メンバーは分解できません。
抵抗値は本製品単体での数値となります。「ボンディング線が不要となる効果」「ボンディング線と併用することで断線した場合の補助」を期待する製品になりますが、必ず実装による検証をお願いします。また、電材部品(リード線等)としての使用はしないでください。
ミドルメンバーの平滑面に塗布されたグリスは除去しないでください。
塗装面は電気が流れないため、塗装筐体に取り付ける際は取付穴周辺にマスキングを施して取り付けてください。
Note
Please use M4 truss or bind head screws. Each drawer part can not be disassembled.
The resistance value was calculated with only this product.
This product was created in expect of working as same as bonding wire/be in place of it in case when bonding wire would broke.
However please be sure to confirm with your actually installed status.
Please do not use this as a electrical parts (like a lead line).
Please do not clean up grease painted on sliding surface of middle member.
Please do not install it onto painted surface for making its electrical conductivity.
The resistance value was calculated with only this product.
This product was created in expect of working as same as bonding wire/be in place of it in case when bonding wire would broke.
However please be sure to confirm with your actually installed status.
Please do not use this as a electrical parts (like a lead line).
Please do not clean up grease painted on sliding surface of middle member.
Please do not install it onto painted surface for making its electrical conductivity.
